RC hammers or Reverse Circulation Hammers RC55 for exploration
ROSCHEN has over 20 years to produce RC hammer, these years ROSCHEN also update the technology continuously and will supply the latest innovation about the RC Hammer. ROSCHEN drilling tool RC hammer is the perfect solution for those tough rock ,it is more efficiently and cost-effectively.
Here are some of the benefits of the Drilling RC Hammer:
Drilling Efficiency
RC Hammers have a higher penetration rate, which means they can drill faster and with less energy. This translates into increased productivity and reduced drilling costs.
RC Hammer technology allows for more efficient drilling compared to conventional drilling tools.
Application Versatility
RC Hammers adapts to all types of soil and drilling conditions, and they are versatile and can be used for a wide variety of drilling applications, including mineral exploration, construction, geotechnical engineering, and oil and gas extraction.
Higher perforation quality
The tool features a strong and durable drilling head that ensures straight and precise drilling. ROSCHEN Drilling RC Hammers are designed to provide higher quality drilling. In addition, high-quality tungsten carbide buttons offer greater wear resistance and longer life.
Sustainability in drilling
ROSCHEN commit to be sustainability at all of our operations, and the RC Hammer is no exception. These drilling tools require less energy to operate, which reduces carbon dioxide emissions and environmental impact. In addition, the regional manufacturing of RC Hammers reduces delivery time and reduces the carbon footprint associated with transportation. If you’re looking for an efficient and cost-effective drilling solution, ROSCHEN RC Hammers are a great choice.
|

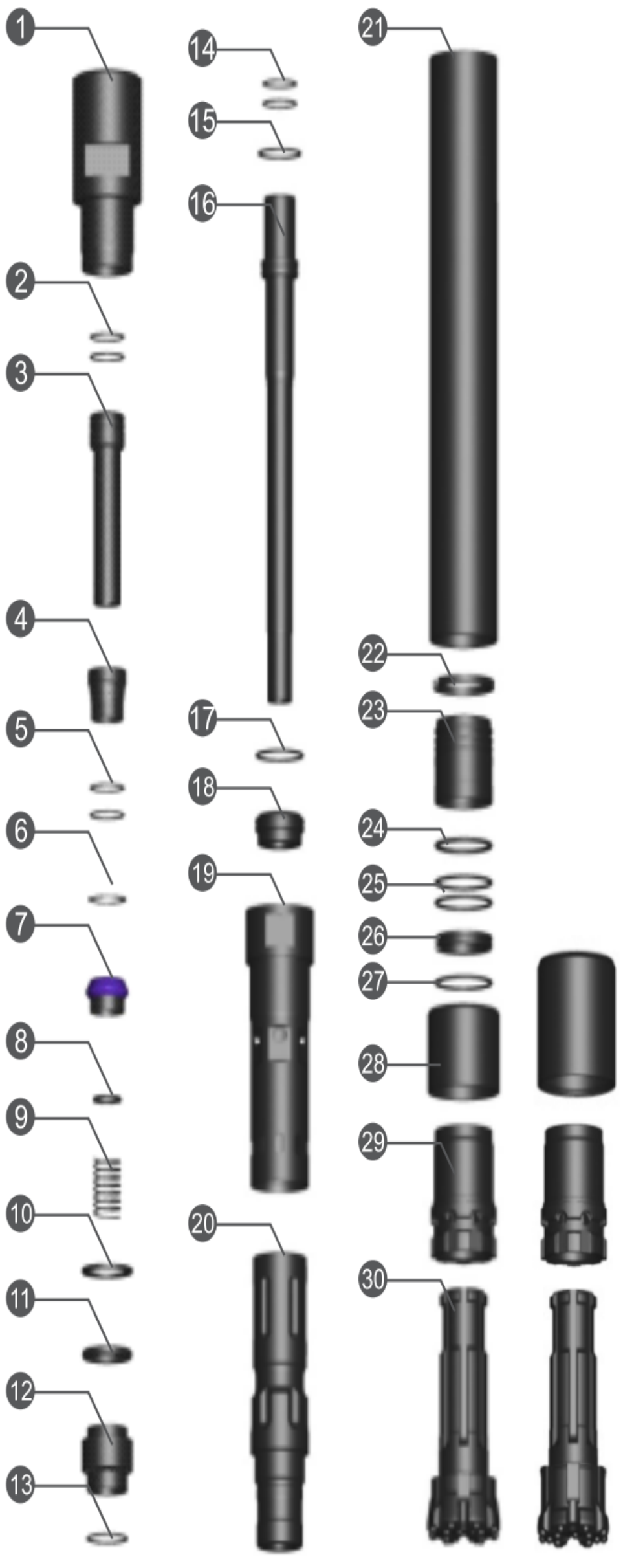

6 |
Circlip |
RC55-06 |
|
7 |
Plunger |
RC55-07 |
|
8 |
Y ring |
RC55-08 |
|
9 |
Spring |
RC55-09 |
|
10 |
Make up ring steel |
RC55-10 |
|
11 |
Viton make up ring |
RC55-11 |
|
12 |
Distributor |
RC55-12 |
|
13 |
O ring |
RC55-13 |
|
14 |
O ring |
RC55-14 |
|
15 |
O ring |
RC55-15 |
|
16 |
Sample tube |
RC55-16 |
|
17 |
O ring |
RC55-17 |
|
18 |
Mount sample tube |
RC55-18 |
|
19 |
Inner cylinder |
RC55-19 |
|
20 |
Piston |
RC55-20 |
|
21 |
Piston case |
RC55-21 |
|
22 |
Piston retaining ring |
RC55-22 |
|
23 |
Bush drive sub |
RC55-23 |
|
24 |
O ring |
RC55-24 |
|
25 |
O ring |
RC55-25 |
|
26 |
Bit retaining ring |
RC55-26 |
|
27 |
O ring |
RC55-27 |
|
28 |
Shroud |
RC55-28 |
|
29 |
Drive sub |
RC55-29 |
|
30 |
Drill bit |
RC55-30 |
|
Lenght(less bit) |
Weight (Less bit) |
External Dia. |
Bit Shank |
Hole Range |
Connection Thread |
|
1295 mm |
86.5 kgs |
Ø130 mm |
RC 55 |
Ø135 ~ 150 mm |
4.5" Remet 4.5" Metzke |
|
Working Pressure |
Impact Rate at 2.4MPa |
Recommended Rotation Speed |
Air Consumption |
||
|
200 ~ 500 (PSI) |
|||||
|
1.5 ~ 3.5 MPa |
35 Hz |
25 ~ 40r/min. |
300 ~ 1200 (CFM) |
||
